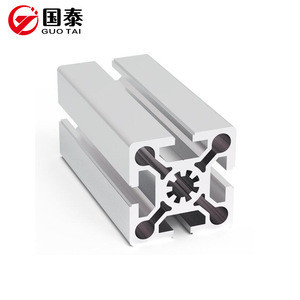

1. T Slot Aluminum Extrusion Supplier 3030 Metal
2. T Slot Aluminum Extrusion Supplier 3030 Stainless Steel
3. T-slot Aluminum Extrusion
4. 80/20 T Slot Aluminum Extrusion

30 series T-slot Aluminium Extrusion covers 30×30, 30×30-2NVS, 30×30RQ, 30×30W, 30×60, 30×90, 30×120 and 30×150 aluminium profiles.

Specification:

Color: The standard color of our t-slots is clear aluminum, but many of our popular size t-slot extrusions are also available in a black anodized finish as well as “safety” yellow. Metric 30 Series: The 30 series is a metric t-slot profile based on 30mm dimensions with the 3030 being the standard square profile with a t-slot grooved into.

Provides a T-slot framing system and resources in your hands to turn dreams into reality. It's easy to assemble and can be configured into endless custom solutions, from DIY project to industrial applications. 80/20 is versatile - from machine guards to robotic arms, racing simulators, and workstations, it is a product for individuals, industries, and businesses. 30 Series, 30mm x 30mm SMOOTH Lite T-Slotted Aluminum Extrusion, TNUTZ Part #EXM-3030. SPECIFICATIONS: Weight = 0.587 lbs/ft (0.873 kg/m) Estimated Area = 0.489 in2 (3.154 cm2) Moment of Inertia = Ix=0.066 in4 (2.75 cm4) Iy=0.066 in4 (2.75 cm4) These extrusions are 100% compatible with the following manufacturers: T-SLOTS #670007; Bosch-Rexroth. A T-slot aluminum extrusion is an extrusion commonly in the shape of a square, rectangle, or curved radius that is made with a long slot in the shape of a “T”. The t-slot extrusions are modular, and extending them through accessories that fit into the t-slot.

Code: S8-30×30
Slot Width: 8.2 mm
Weight: 0.95 kg/m
Mass of Inertia: lx: 2.86 cm⁴ ly: 2.85 cm⁴
Section Modulus: zx: 1.80 cm³ zy: 1.80 cm³

Summary:

Order No: HY-S8-3030, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2 mm.

3030 profile’s slot width is 8.2 mm, and T-slot height is 9.2 mm, ideal for medium-duty, medium-stress construction, such as guarding, partitions, shelves, etc. Its appearance adopts round angle transition; the elegant surface is anodized and resists corrosion. Silver and black colors are available.

3030 Series T-Slot Aluminium Extrusion Profile often matches with M8 bolt (L=20 mm) and nut. If you have any special request, please inform our business personnel.

Specification:

Code: S8-30×30-2NVS
Slot Width: 8.2 mm
Weight: 1.02 kg/m
Mass of Inertia: lx: 2.98 cm⁴ ly: 2.98 cm⁴
Section Modulus: zx: 2.05 cm³ zy: 2.05 cm³

Summary:

Order No: HY-S8-3030-2NVS, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2 mm.

3030-2NVS profile has two adjacent slots; two sides are closed. The slot width is 8.2 mm and height is 9.2 mm, ideal for medium-duty construction. Two closed T-slots provide neat, finished appearance. It’s very suitable to those framework structures that have high seal requirement.

Specification:

Code: S8-30×30RQ
Slot Width: 8.2 mm
Weight: 0.90 kg/m
Mass of Inertia: lx: 2.52 cm⁴ ly: 2.52 cm⁴
Section Modulus: zx: 1.51 cm³ zy: 1.51 cm³

Summary:

Order No: HY-S8-3030RQ, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, R= 25°, Hole: φ6.8 mm, Thickness of diagonal bar: 1.8 mm.

3030RQ profile is semi-circular; it’s usually used to make columns of framework, and its exterior uses round angle transition. Apply to automotive, factory automation and industrial module structure or other special areas.

The application of 3030RQ is different to other profiles that directly connect with bolt & nut; it usually uses three profiles connecting parts with three-dimensions, matching with the bolt connection; 3030RQ profile end needs tapping.

Specification:

Code: S8-30×30W
Slot Width: 8.2 mm
Weight: 1.05 kg/m
Mass of Inertia: lx: 3.35 cm⁴ ly: 3.35 cm⁴
Section Modulus: zx: 2.82 cm³ zy: 2.82 cm³

T Slot Aluminum Extrusion Supplier 3030 Metal

Summary:

Order No: HY-S8-3030W, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.

3030W is heavy support aluminium profile; its wall thickness is 2.2 mm which attaches high tension and strength performance. Widely used in various structures and has good bearing performance. Appropriate accessories should be selected according to the application environment, any problem please get in touch with our marketing personnel.

Specification:

Code: S8-30×60
Slot Width: 8.2 mm
Weight: 1.75 kg/m
Mass of Inertia: lx: 19.80 cm⁴ ly: 5.15 cm⁴
Section Modulus: zx: 6.60 cm³ zy: 3.30 cm³

Summary:

Order No: HY-S8-3060, T-slot height: 9.2 mm, Section size: 30 mm × 60 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.

3060 profile usually applies to engraving machines; it has one slot in 30 mm section and two slots in 60 mm section, also use in aluminium framework. It’s one of the most widely used aluminium profiles in the industrial framework.

Anodizing surface treatment without secondary pollution and frame assembly are very beautiful, silver color is most popular. 3060 Series T-Slot Aluminium Extrusion Profile matches usage with M6 T-bolt & M6 Flange nut, this combination will make the framework much steadier and sturdier.

Specification:

Code: S8-30×90
Slot Width: 8.2 mm
Weight: 2.45 kg/m
Mass of Inertia: lx: 61.18 cm⁴ ly: 7.83 cm⁴
Section Modulus: zx: 13.59 cm³ zy: 5.22 cm³

Summary:

Order No: HY-S8-3090, T-slot height: 9.2 mm, Section size: 30 mm × 90 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.

Because of high tension and strength, 3090 profile is widely applied to the framework of overloaded structures playing a supporting role.

The accessories that matched bolt & nut could be M6 T-bolt & M6 Flange nut, special M6 T-nut & core screw internal connection for optional. Please kindly notice that the brackets should be selected when using bolt & nut. The stability and bearing force of the framework must be taken into account when choosing the connection mode.

T Slot Aluminum Extrusion Supplier 3030 Stainless Steel

Specification:

Code: S8-30×120
Slot Width: 8.2 mm
Weight: 3.20 kg/m
Mass of Inertia: lx: 136.88 cm⁴ ly: 10.08 cm⁴
Section Modulus: zx: 21.67 cm³ zy: 6.47 cm³

Summary:

Order No: HY-S8-30120, T-slot height: 9.2 mm, Section size: 30 mm × 120 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.4 mm, Wall thickness: 2.4 mm.

30120 profile’s wall thickness is 2.4 mm, weight 3.2 kg/m; the edges are treated with the method of chamfered; anodized surface finish, beautiful appearance and corrosion resistance.

30120 profile is widely used in aluminium framework system of overloaded structures, the matching accessories could be M6 T-bolt & M6 Flange nut, special M6 T-nut & core screw internal connection for optional. More questions please email us or directly contact our marketing personnel.

Specification:

Code: S8-30×150
Slot Width: 8.2 mm
Weight: 3.95 kg/m
Mass of Inertia: lx: 265.83 cm⁴ ly: 12.92 cm⁴
Section Modulus: zx: 35.44 cm³ zy: 8.61 cm³

Summary:

Order No: HY-S8-30150, T-slot height: 9.2 mm, Section size: 30 mm × 150 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.1 mm, Wall thickness: 2.2 mm.

T-slot Aluminum Extrusion

30150 profile is the biggest one in 30 series; it has 150 mm section and good weight capacity, mainly application in the fields of industrial aluminium system and some special frameworks, the connection mode with accessories are inner join and outer join, usually chooses bracket.

Specification:

Code: S8-30×150W
Slot Width: 8.2 mm
Weight: 8.20 kg/m
Mass of Inertia: lx: 455.75 cm⁴ ly: 23.79 cm⁴
Section Modulus: zx: 60.77 cm³ zy: 15.86 cm³

Summary:

Order No: HY-S8-30150W, T-slot height: 12.5 mm, Section size: 30 mm × 150 mm, Hole: φ12 mm, Thickness of diagonal bar: 4 mm.

80/20 T Slot Aluminum Extrusion

From the picture above and major parameter weight 8.2 kg/m and thickness 4 mm, we can image that 30150W (W stands for weight) has higher tension and strength, greater bearing force than other 30 series profile. So how to select right bolt & nut and adopt perfect connection mode, we will provide you with the best solution according to practical usage and applied situation. Please email or call us now!
